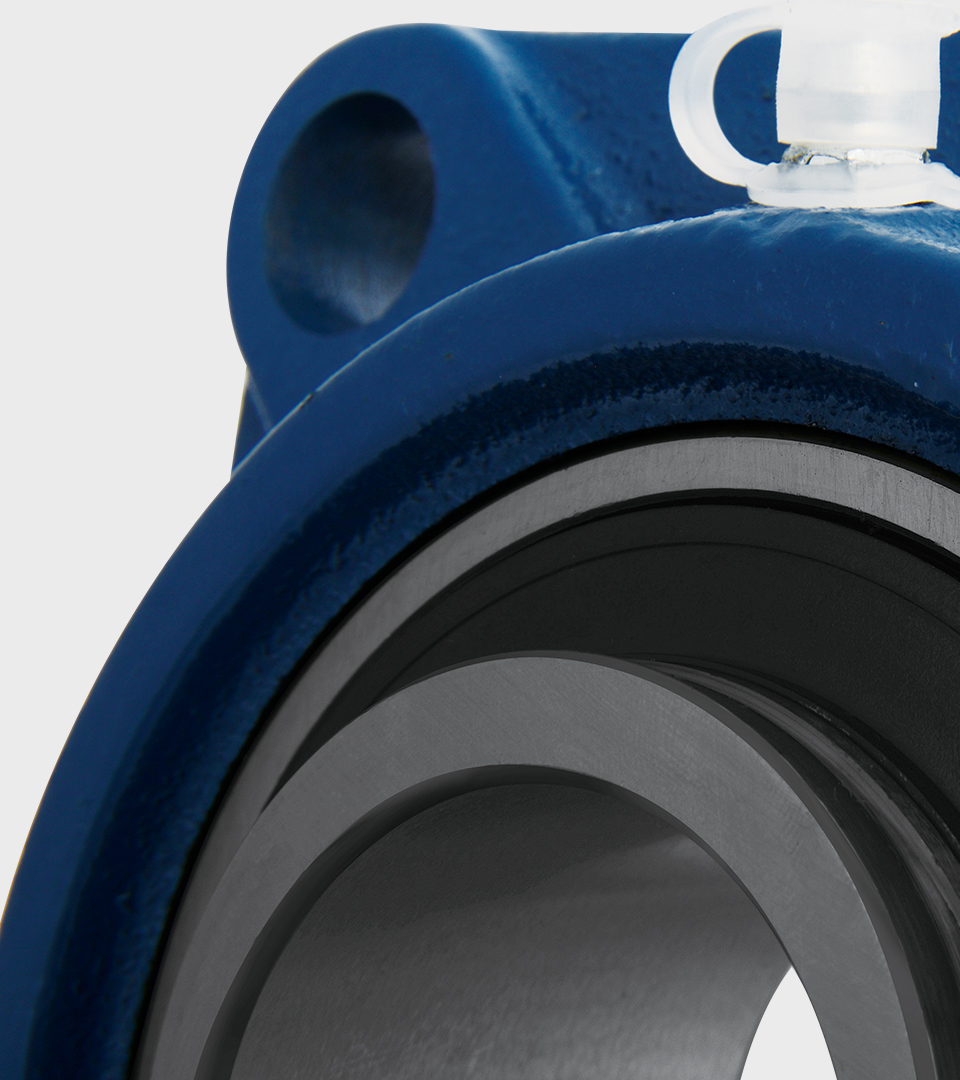

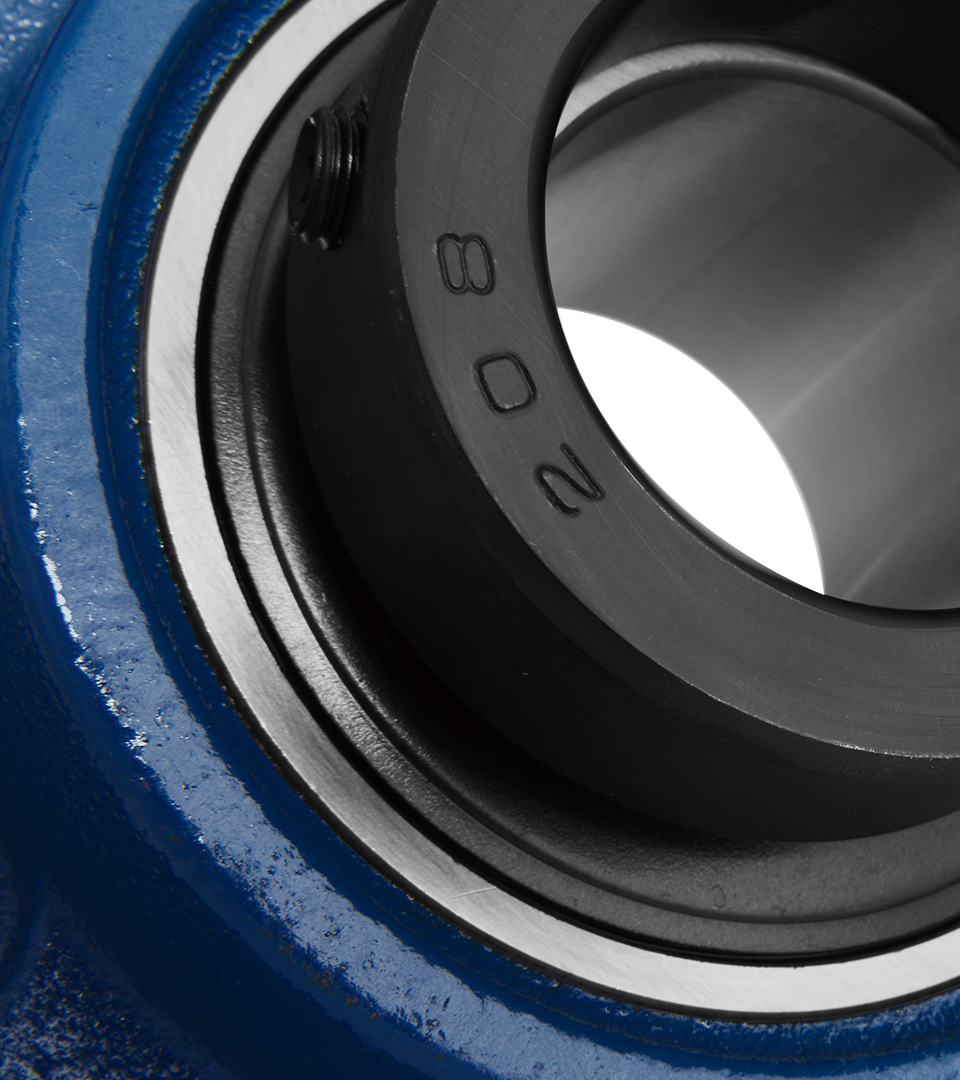

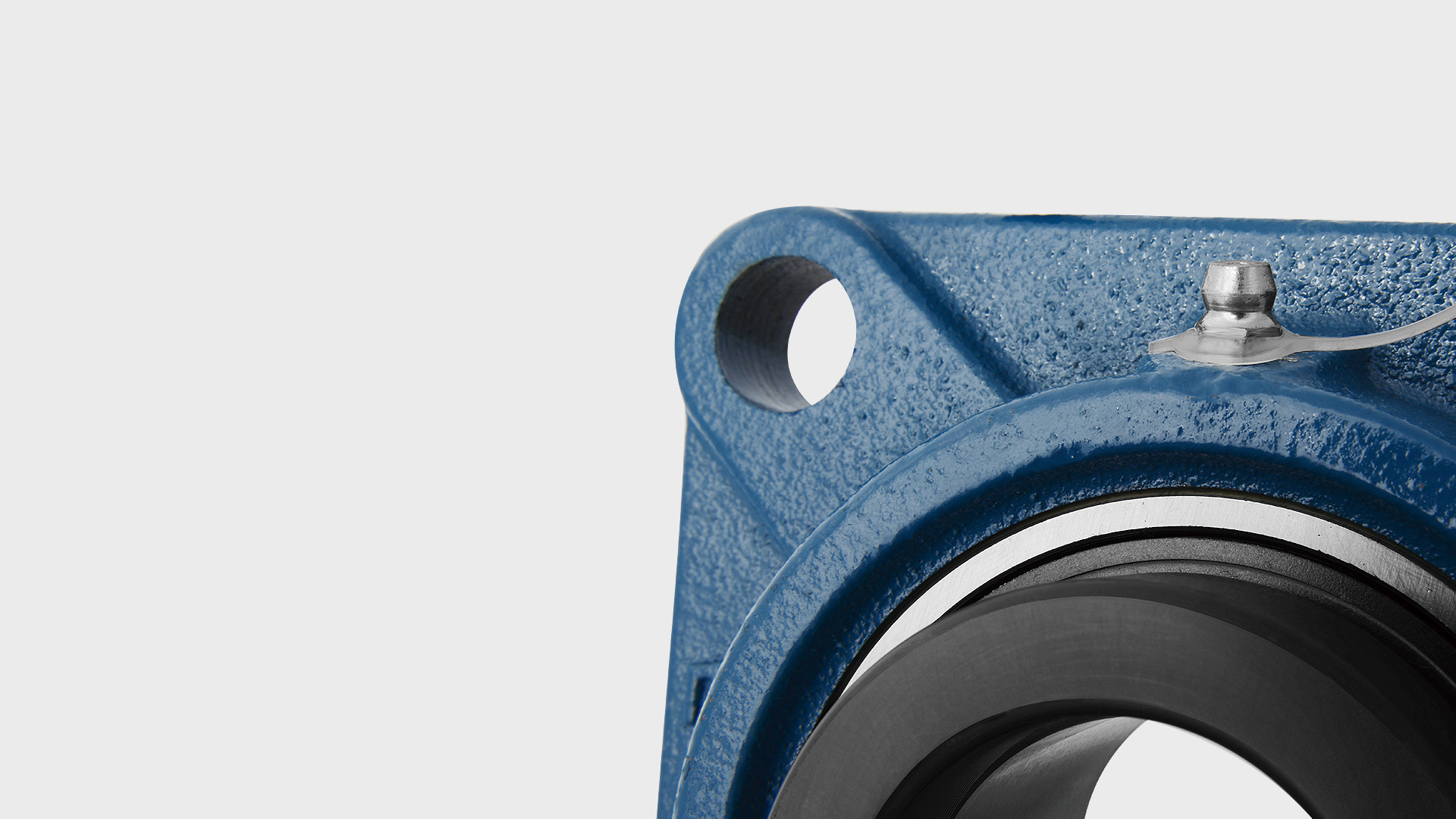

精湛的细节
精湛的细节

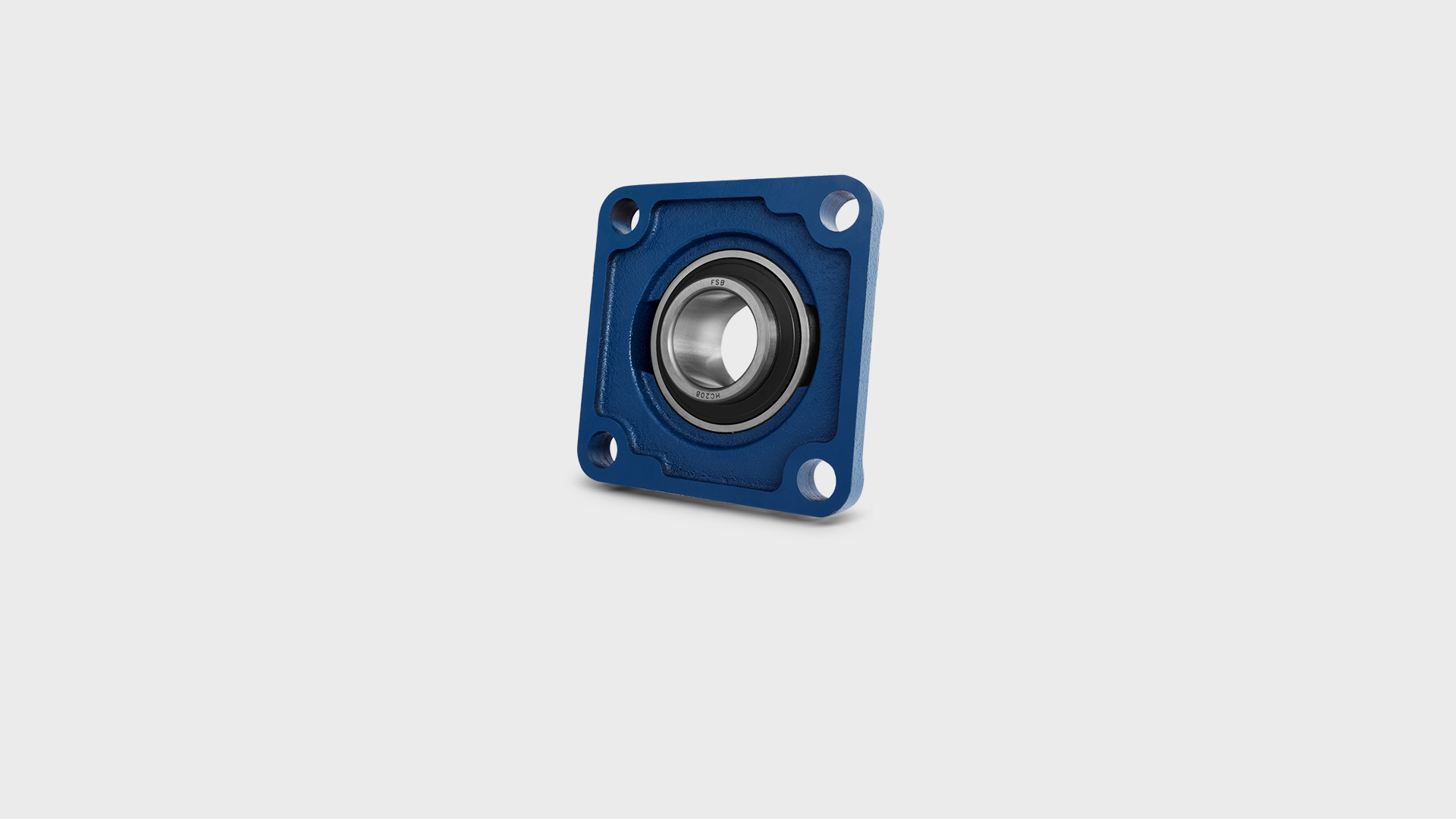

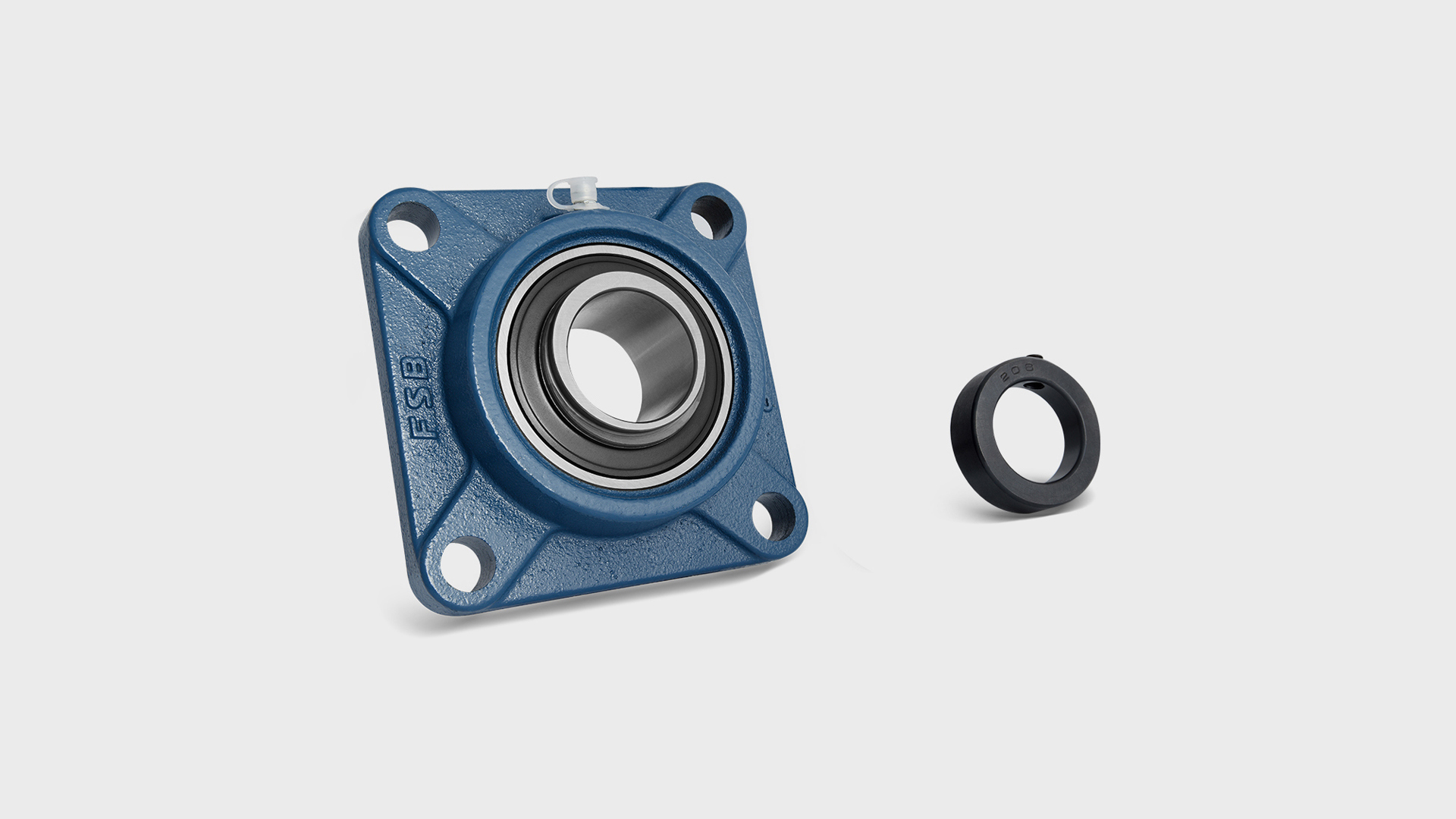

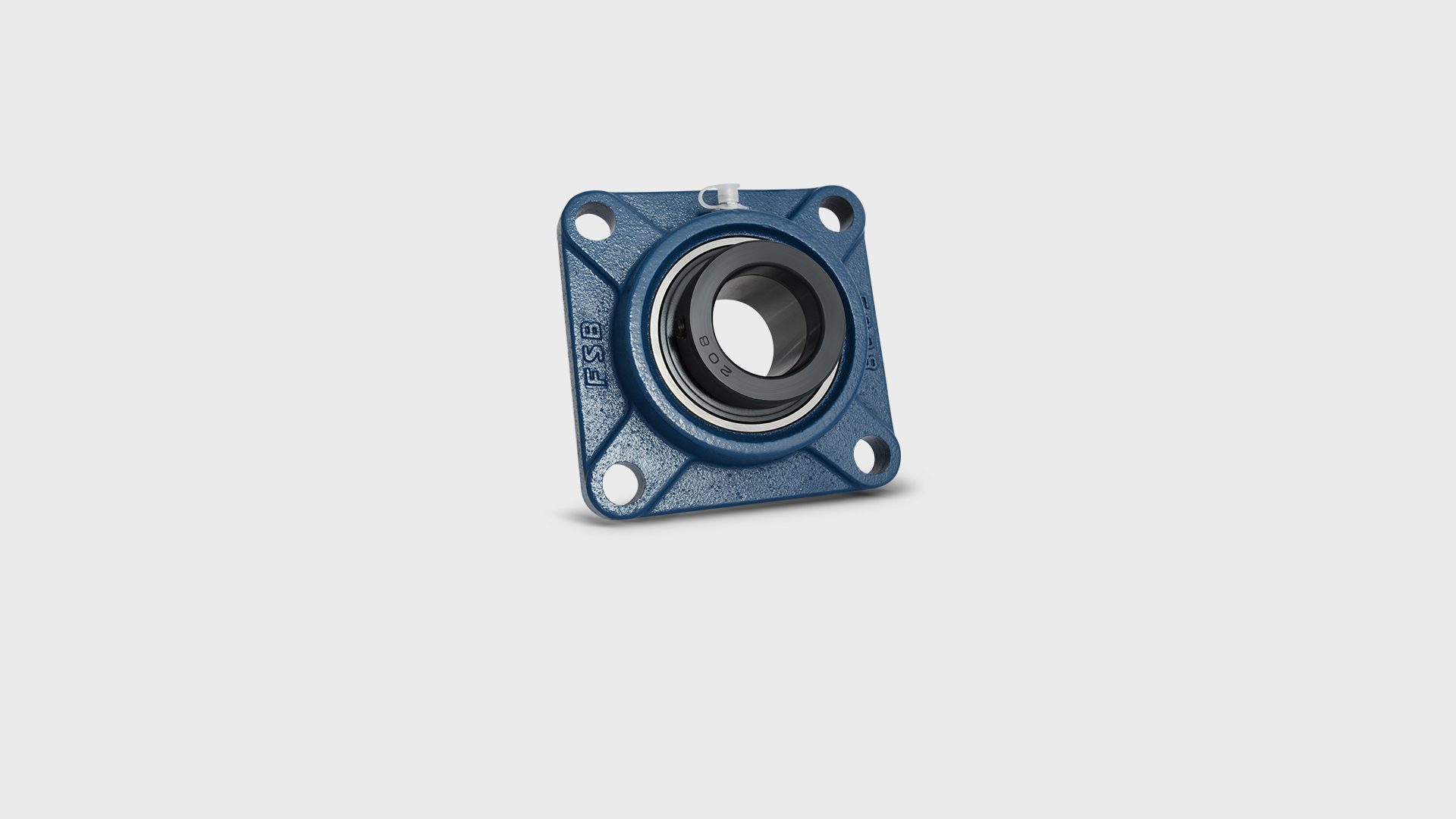

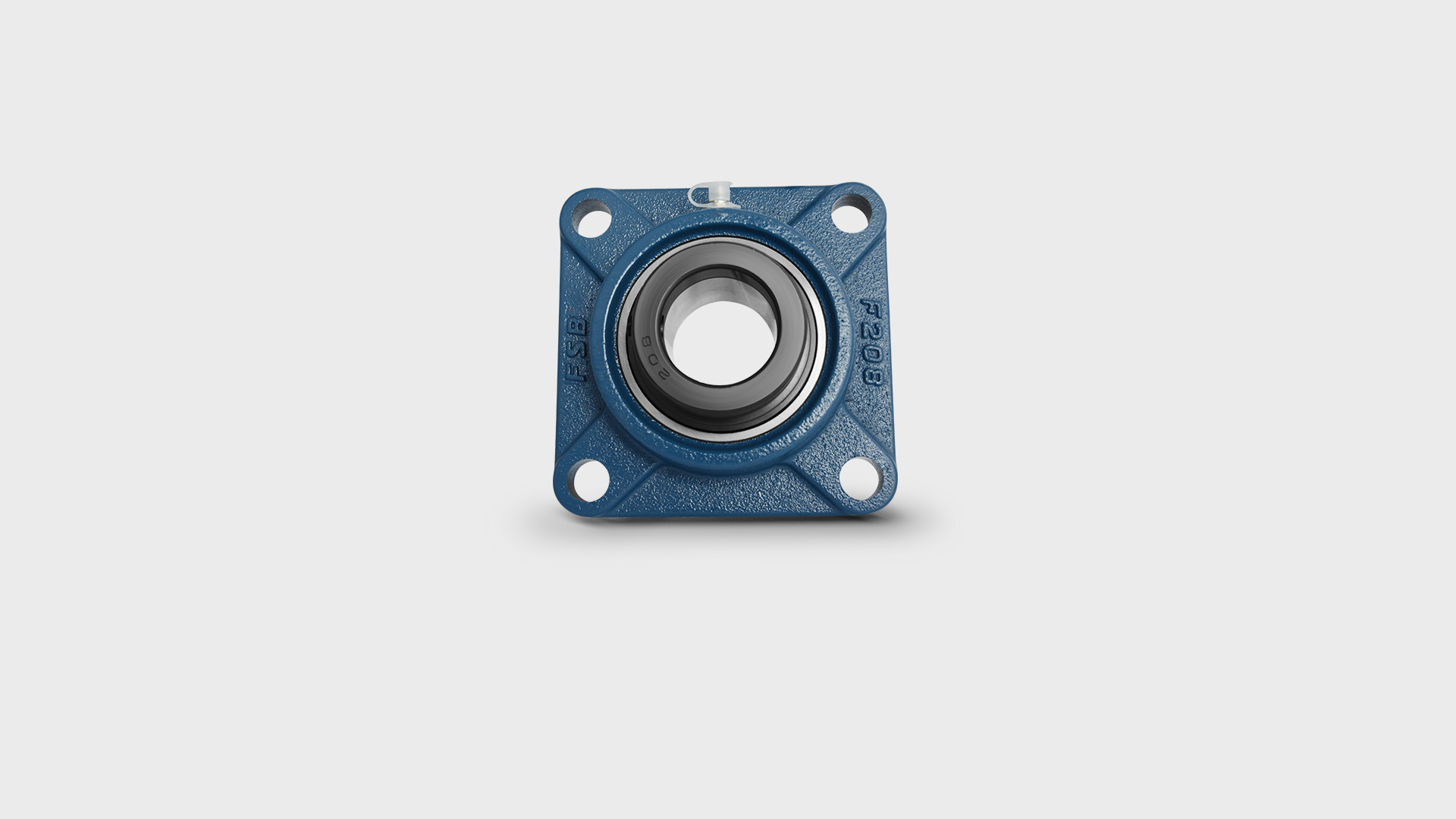

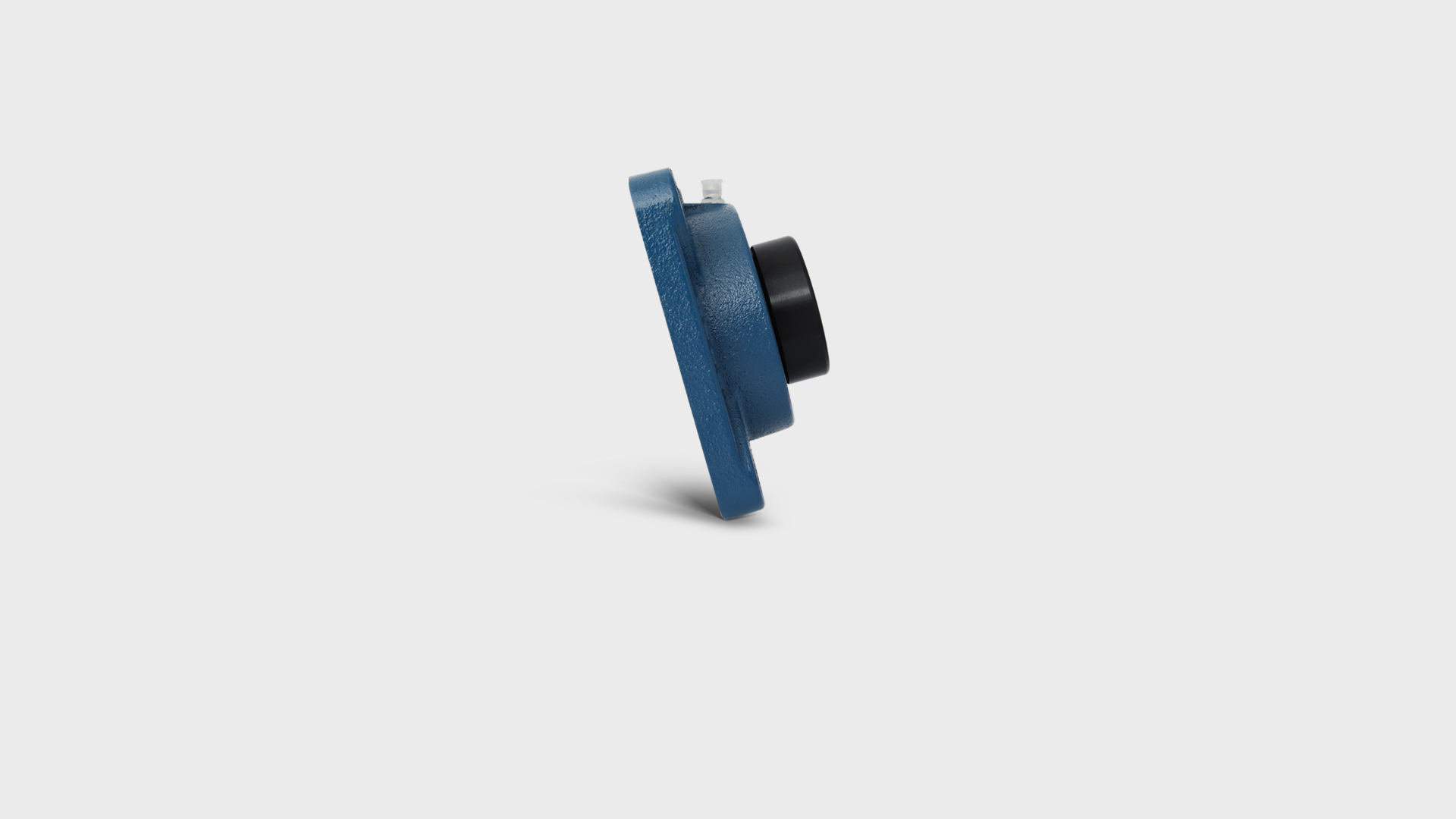

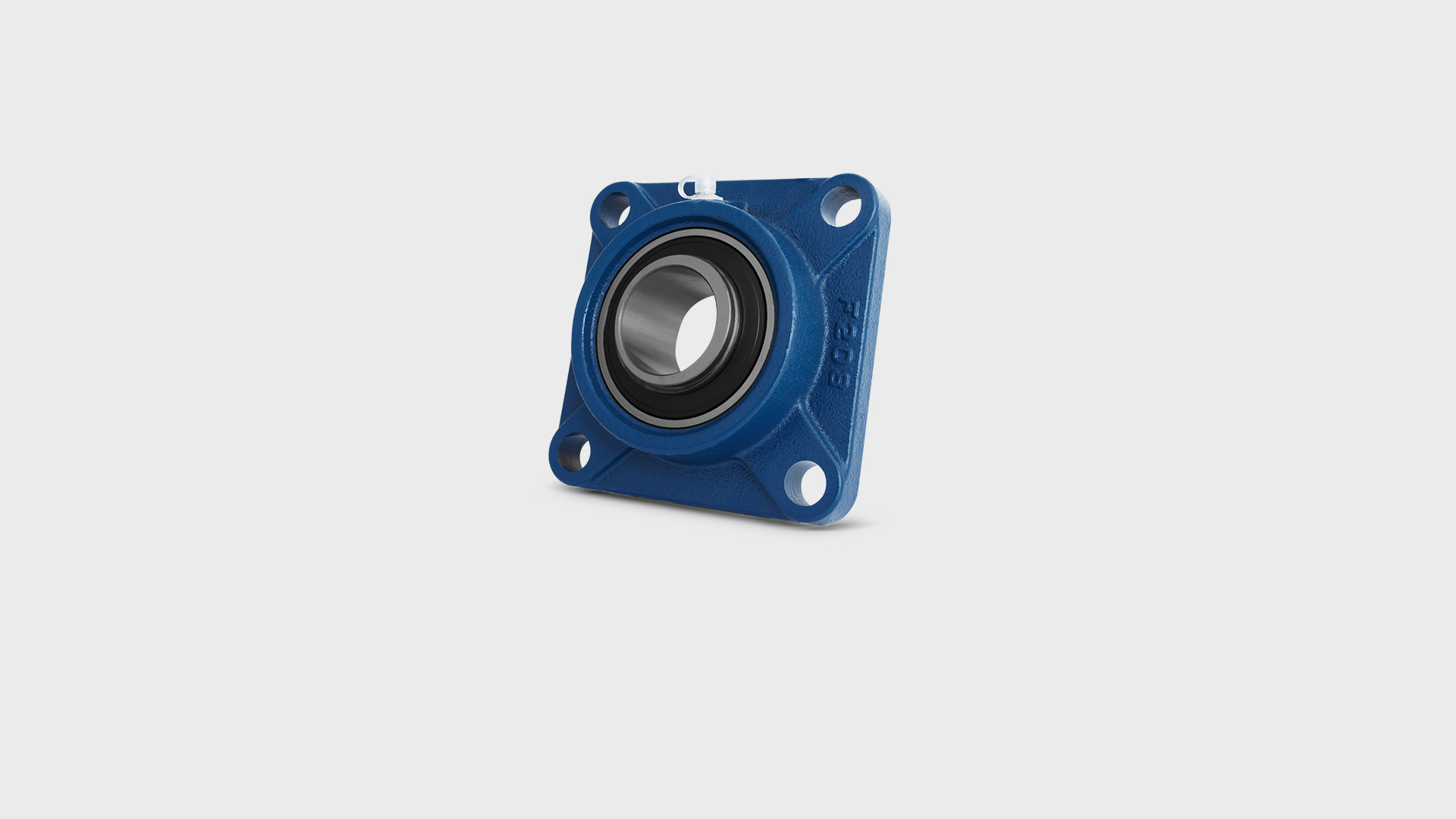

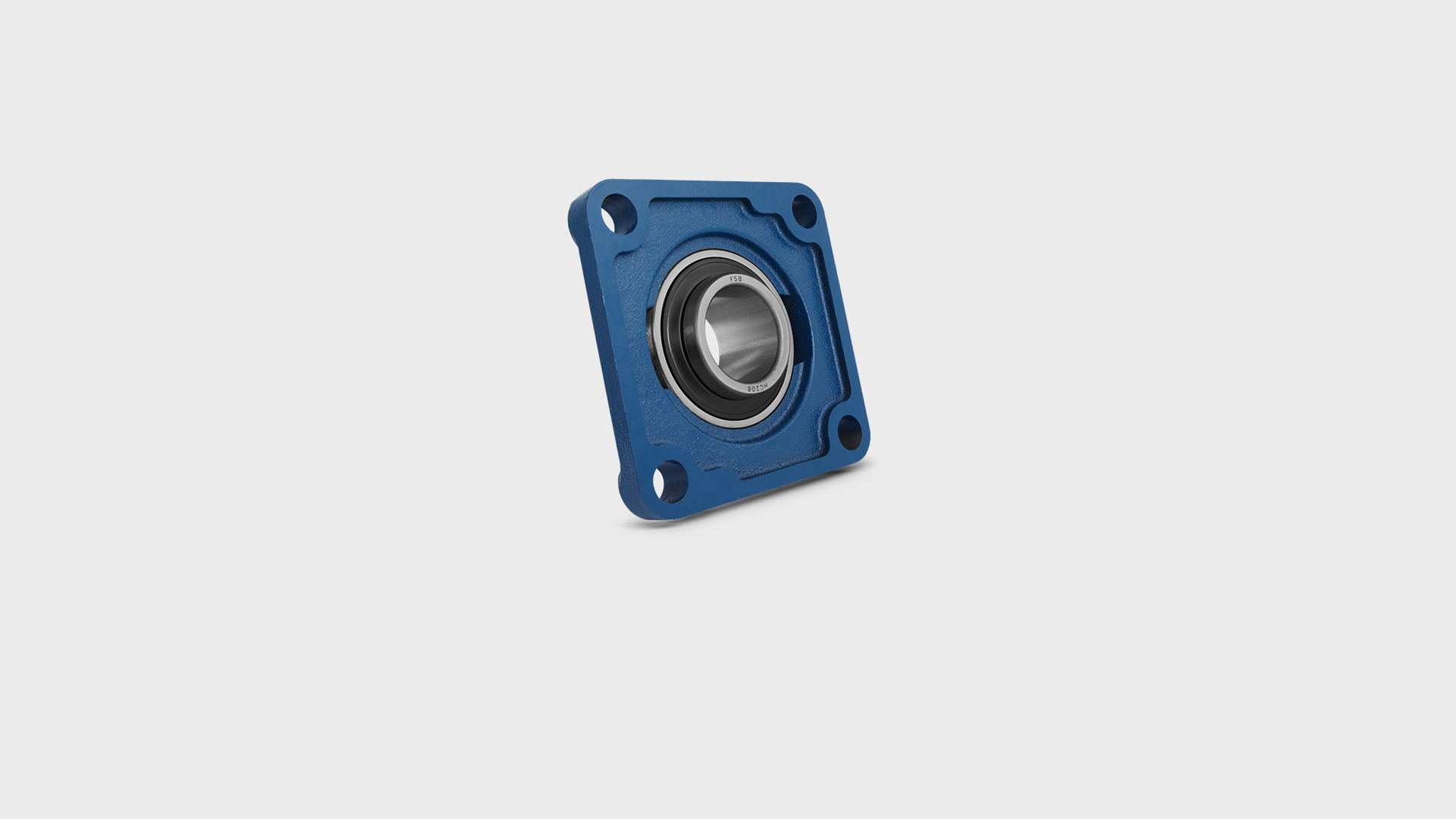

HCF200
| 带座轴承型号 |
轴 径 | 尺 寸 | 螺 栓 | 轴承芯型号 |
轴承座型号 |
基本额定载荷 |
疲劳极限载荷 |
极限转速(SRS) 轴的配合公差(h6) |
重量 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm / in | mm | in | — |
— |
动载荷 |
静载荷 |
m | ||||||||||||

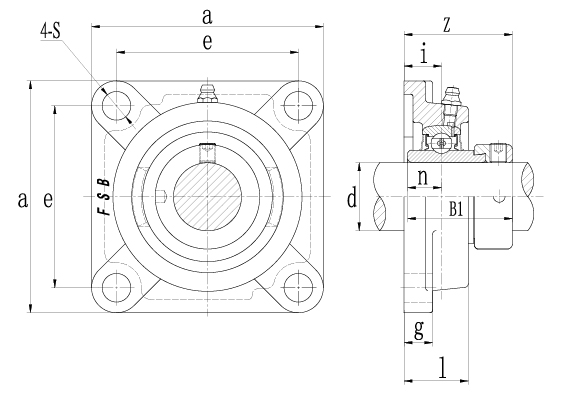

| d | a | e | i | g | l | S | Z | B1 | n | Cr |
Cor |
Cur |
r / min |
≈Kg |
|||||||
| KN |
|||||||||||||||||||||
| HCF201 | 12 | — |
76 | 54 | 15 | 12 | 25.5 | 11.5 | 38.4 |
37.3 | 13.9 | M10 | — |
HC201 | F203 | 9.56 | 4.75 | 0.20 | 9500 | 0.5 | |
| HCF201-8 |
— |
1/2 | 3 | 2-1/8 | 19/32 | 15/32 | 1 | 29/64 |
1.5118 | 1.4685 | 0.5472 | — |
3/8 | HC201-8 | |||||||
| HCF202 |
15 | — |
76 |
54 |
15 |
12 |
25.5 |
11.5 |
38.4 |
37.3 |
13.9 |
M10 |
— |
HC202 | F203 |
9.56 |
4.75 |
0.20 |
9500 |
0.5 |
|
| HCF202-10 |
— |
5/8 | 3 |
2-1/8 |
19/32 |
15/32 |
1 |
29/64 |
1.5118 |
1.4685 |
0.5472 |
— |
3/8 |
HC202-10 |
|||||||
| HCF203 |
17 | — |
76 |
54 |
15 |
12 |
25.5 |
11.5 |
38.4 |
37.3 |
13.9 |
M10 |
— |
HC203 |
F203 |
9.56 |
4.75 |
0.20 |
9500 |
0.5 |
|
| HCF203-11 |
— |
11/16 | 3 |
2-1/8 |
19/32 |
15/32 |
1 |
29/64 |
1.5118 |
1.4685 |
0.5472 |
— |
3/8 |
HC203-11 |
|||||||
| HCF204 |
20 |
— |
86 | 64 | 15 | 12 | 25.5 | 12 | 41.6 | 43.7 | 17.1 | M10 |
— |
HC204 |
F204 |
12.700 | 6.55 | 0.28 | 8500 | 0.6 | |
| HCF204-12 |
— |
3/4 | 3-3/8 | 2-33/64 | 19/32 | 15/32 | 1 | 15/32 | 1.6378 | 1.7205 | 0.6732 | — |
3/8 |
HC204-12 |
|||||||
| HCF205 |
25 |
— |
95 | 70 | 16 | 14 | 27 | 12 | 42.9 | 44.3 | 17.4 | M10 |
— |
HC205 |
F205 |
14.0 | 7.80 | 0.34 | 7000 | 0.8 | |
| HCF205-14 |
— |
7/8 |
3-3/4 | 2-3/4 | 5/8 | 9/16 | 1-1/16 | 15/32 | 1.6890 | 1.7441 | 0.6850 | — |
3/8 |
HC205-14 |
|||||||
| HCF205-15 |
— |
15/16 |
HC205-15 |
||||||||||||||||||
| HCF205-16 |
— |
1 |
HC205-16 |
||||||||||||||||||
| HCF206 |
30 |
— |
108 | 83 | 18 | 14 | 31 | 12 | 48.15 | 48.4 | 18.25 | M10 |
— |
HC206 |
F206 |
19.50 | 11.2 | 0.48 | 6300 | 1.2 | |
| HCF206-18 |
— |
1-1/8 |
4-1/4 | 3-17/64 | 45/64 | 9/16 | 1-7/32 | 15/32 | 1.8957 | 1.9055 | 0.7185 | — |
3/8 |
HC206-18 |
|||||||
| HCF206-19 |
— |
1-3/16 |
HC206-19 |
||||||||||||||||||
| HCF206-20 |
— |
1-1/4 |
HC206-20 |
||||||||||||||||||
| HCF207 |
35 |
— |
117 | 92 | 19 | 16 | 34 | 14 | 51.3 | 51.1 | 18.8 | M12 |
— |
HC207 |
F207 |
25.50 | 15.3 | 0.66 | 5300 | 1.6 | |
| HCF207-20 |
— |
1-1/4 |
4-19/32 | 3-5/8 | 3/4 | 5/8 | 1-11/32 | 35/64 | 2.0197 | 2.0118 | 0.7402 | — |
7/16 | HC207-20 |
|||||||
| HCF207-21 |
— |
1-5/16 |
HC207-21 |
||||||||||||||||||
| HCF207-22 |
— |
1-3/8 |
HC207-22 |
||||||||||||||||||
| HCF207-23 |
— |
1-7/16 |
HC207-23 |
||||||||||||||||||
| HCF208 |
40 |
— |
130 | 102 | 21 | 16 | 36 | 16 | 55.9 | 56.3 | 21.4 | M14 |
— |
HC208 |
F208 |
30.70 | 19.0 | 0.87 | 4800 | 1.9 | |
| HCF208-24 |
— |
1-1/2 |
5-1/8 | 4-1/64 | 53/64 | 5/8 | 1-13/32 | 5/8 | 2.2008 | 2.2165 | 0.8425 | — |
1/2 | HC208-24 |
|||||||
| HCF208-25 |
— |
1-9/16 |
HC208-25 |
||||||||||||||||||
| HCF209 |
45 |
— |
137 | 105 | 22 | 18 | 38 | 16 | 56.9 | 56.3 | 21.4 | M14 |
— |
HC209 |
F209 |
33.20 | 21.6 | 0.920 | 4300 | 2.3 | |
| HCF209-26 |
— |
1-5/8 |
5-13/32 | 4-9/64 | 55/64 | 23/32 | 1-1/2 | 5/8 | 2.2402 | 2.2165 | 0.8425 | — |
1/2 |
HC209-26 |
|||||||
| HCF209-27 |
— |
1-11/16 |
HC209-27 |
||||||||||||||||||
| HCF209-28 |
— |
1-3/4 |
HC209-28 |
||||||||||||||||||
| HCF210 |
50 |
— |
143 | 111 | 22 | 18 | 40 | 16 | 60.1 | 62.7 | 24.6 | M14 |
— |
HC210 |
F210 |
35.10 | 23.2 | 0.98 | 4000 | 2.6 | |
| HCF210-30 |
— |
1-7/8 |
5-5/8 | 4-3/8 | 55/64 | 23/32 | 1-9/16 | 5/8 | 2.3661 | 2.4685 | 0.9685 | — |
1/2 |
HC210-30 |
|||||||
| HCF210-31 |
1-15/16 |
HC210-31 |
|||||||||||||||||||
| HCF210-32 |
2 |
HC210-32 |
|||||||||||||||||||
| HCF211 |
55 |
— |
162 | 130 | 25 | 20 | 43 | 19 | 68.65 | 71.4 | 27.75 | M16 |
— |
HC211 |
F211 |
43.60 | 29.0 | 1.25 | 3600 | 3.8 | |
| HCF211-32 |
— |
2 |
6-3/8 | 5-1/8 | 63/64 | 25/32 | 1-11/16 | 3/4 | 2.7028 | 2.8110 | 1.0925 | — |
5/8 | HC211-32 |
|||||||
| HCF211-34 |
— |
2-1/8 |
HC211-34 |
||||||||||||||||||
| HCF211-35 |
— |
2-3/16 |
HC211-35 |
||||||||||||||||||
| HCF212 |
60 |
— |
175 | 143 | 29 | 20 | 48 | 19 | 75.85 | 77.8 | 30.95 | M16 |
— |
HC212 |
F212 |
52.70 | 36.0 | 1.53 | 3400 | 4.8 | |
| HCF212-36 |
— |
2-1/4 |
6-7/8 | 5-5/8 | 1-9/64 | 25/32 | 1-7/8 | 3/4 | 2.9862 | 3.0630 | 1.2185 | — |
5/8 | HC212-36 |
|||||||
| HCF212-38 |
— |
2-3/8 |
HC212-38 |
||||||||||||||||||
| HCF212-39 |
— |
2-7/16 |
HC212-39 |
||||||||||||||||||
| HCF213 |
65 |
— |
187 | 149 | 30 | 20 | 50 | 19 | 81.3 | 85.6 | 34.3 | M16 |
— |
HC213 |
F213 |
57.20 | 40.0 | 1.70 | 3000 | 6.0 | |
| HCF213-40 |
— |
2-1/2 |
7-3/8 | 5-55/64 | 1-3/16 | 25/32 | 1-31/32 | 3/4 | 3.2008 | 3.3701 | 1.3504 | — |
5/8 |
HC213-40 |
|||||||
| HCF214 |
70 |
— |
193 | 152 | 31.8 | 24.8 | 54.8 | 19 | 83 | 85.3 | 34.1 | M16 |
— |
HC214 |
F214 |
62.40 | 45.0 | 1.86 | 2800 | 6.4 | |
| HCF214-42 |
— |
2-5/8 |
7-19/32 | 5-63/64 | 11/4 | 31/32 | 2-5/32 | 3/4 | 3.2677 | 3.3583 | 1.3425 | — |
5/8 |
HC214-42 |
|||||||
| HCF214-43 |
— |
2-11/16 |
HC214-43 |
||||||||||||||||||
| HCF214-44 |
— |
2-3/4 |
HC214-44 |
||||||||||||||||||
| HCF215 |
75 |
— |
200 | 159 | 35 | 25 | 57 | 19 | 89.6 | 92.1 | 37.5 | M16 |
— |
HC215 |
F215 |
66.30 | 49.0 | 2.04 | 2600 | 7.2 | |
| HCF215-47 |
— |
2-15/16 |
7-7/8 | 6-17/64 | 1-3/8 | 63/64 | 2-1/4 | 3/4 | 3.5276 | 3.6260 | 1.4764 | — |
5/8 |
HC215-47 |
|||||||
| HCF215-48 |
— |
3 | HC215-48 |
||||||||||||||||||
